CONTACT DATA | |

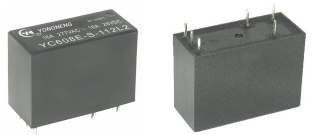

Model |
YC608E |
Contact Arrangement |
1A 、1C |
Contact Resistance |
100 mΩ Max. |
Contact Material | Silver Alloy |
Contact Rating ( Res.Load ) | 16A 250VAC
/30VDC |
Max. Switching Current | 16A |
Max. Switching Voltage | 277VAC/30VDC |
Max. Switching Power | 4000VA/300W |
Mechanical endurance | 1x107 次 OPS |
Electrical endurance | 1x105 次 OPS |
CHARACTERISTICS | |
Set Time ( at nomi.volt.) |
10ms Max. |
Release Time ( without diode ) | 10ms Max. |
Insulation Resistance | 1000MΩ Min.( 500VDC ) |
Dielectric Strength | Between Open Contacts : 1,000VAC, 50/60Hz 1 min. |
Between Coil & Contacts: 4,500VAC, 50/60Hz 1 min | |
Vibration resistance | Functional: 10~55Hz 1.5mm ( DA ) |
Destructive: 10~55Hz 1.5mm ( DA ) | |
Shock resistance | Functional: 10G Min. |
Destructive: 100G Min. | |
Ambient Temperature | -40℃~+105℃ ( No condensation) |
Unit Weight | Approx. 12g |
COIL DATA (at 23℃) | ||||||
Rated voltage (VDC) |
Rated current ±10%(mA) |
Coil resistance ±10%(Ω ) |
Pulse duration ms (Min.) |
Operate voltage VDC (Max.) |
Release voltage VDC (Max.) |
Rated coil power (W) |
5 |
108.0 |
47 |
|
75 % |
of rated voltage 75 % |
( single coil ) |
6 |
90.0 |
68 | ||||
9 |
60.0 |
150 | ||||
12 |
45.0 |
270 | ||||
18 |
30.0 |
600 | ||||
24 |
22.5 |
1100 | ||||
48 |
11.3 |
4400 | ||||
5 |
144.0 |
35 | 50ms |
of rated voltage 75 % |
of rated voltage 75 % |
approx. 0.72 ( dual coil ) |
6 |
120.0 |
50 | ||||
9 |
80.0 |
112 |
||||
12 |
60.0 |
200 |
||||
18 | 40.0 |
450 |
||||
24 | 30.0 |
820 |
||||
48 | 15.0 |
3300 |
ORDERING INFORMATION | |
Type designation : |
YC608E |
Number of poles : | 1-1 Group |
Coil voltage : |
05,06,09,12,15,18,24,36,48 (VDC) |
Protective construction : |
S-Flux proofed , SH-Sealed type |
Contact form : |
Nil-Form C , M-Form A , B-Form B |
Coil type: |
L1- Single coil 0.54W; L2- Dual coil 0.72W. |
Outline Dimensions |
PCB Layout (Bottom View) |
Wiring Diagram( Bottom View) |
Dual coil ![]() Single coil |
![]() |
![]() |
Remark :
1 Unmarked dimensional tolerance .
≤1mm: ±0 2mm ;(1 ~5 )mm: ±0 3mm ; ≥5mm: ±0 4mm
2 . The tolerance of PCB layout is always: ±0.1mm.
3.Extended terminal dimension is dimension before soldering.
