| CONTACT DATA | |
| Type |

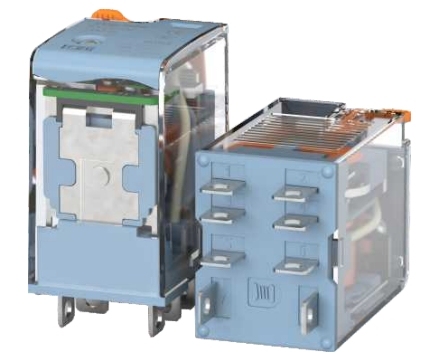

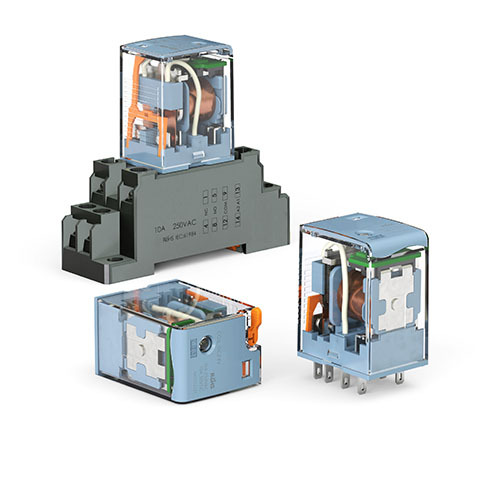

Power Relay |
| Model No. |
12A-24V-2NO2NC |
| Contact Arrangement |
2A, 2B |
| Contact Resistance |
100 mΩ Max. |
| Contact Material | Silver Alloy |
| Contact Rating ( Res.Load ) | 12A 220VAC
/24VDC |
| Max. Switching Current | 12A |
| Max. Switching Voltage | 250VAC/30VDC |
| Max. Switching Power | 1750VA/210W |
| Mechanical endurance | 2x107 次 OPS |
| Electrical endurance | 5x104 次 OPS |
| CHARACTERISTICS | |
| Operate Time ( at nomi.volt. ) | 25ms Max. |
| Release Time ( without diode ) | 25ms Max. |
| Insulation Resistance | 500MΩ Min.( 500VDC ) |
| Dielectric Strength |
Between Open Contacts : 1,000VAC, 50/60Hz 1 min |
|
Between Open Contacts : 1,000VAC, 50/60Hz 1 min |
|
| Ambient Temperature | -40℃~+70℃ ( No condensation) |
| Rated Coil Power | 0.9W,1.2VA |
