Features：
| CONTACT DATA | |
| Model |

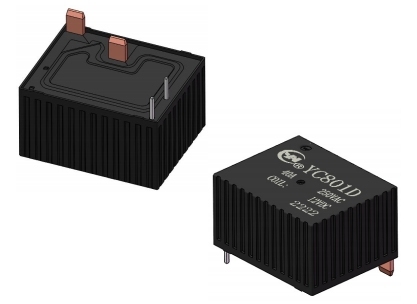

YC801D |
| Contact Arrangement |
/ |
| Contact Resistance |
10 mΩ Max. |
| Contact Material | Silver Alloy |
| Contact Rating ( Res.Load ) | 40A 250VAC |
| Max. Switching Current | 40A |
| Max. Switching Voltage | 400VAC/110VDC |
| Max. Switching Power | 25000VA |
| Mechanical endurance | 100000 次 OPS |
| Electrical endurance | 50000 次 OPS |
| CHARACTERISTICS | |
|
Set Time ( at nomi.volt.) |
20ms Max. |
| Release Time ( without diode ) | 20ms Max. |
| Insulation Resistance | 100MΩ Min.( 500VDC ) |
| Dielectric Strength | Between Open Contacts : 2000VAC, 50/60Hz 1 min. |
| Between Coil & Contacts: 4,000VAC, 50/60Hz 1 min | |
| Vibration resistance | Functional: 10~55Hz 双振幅 1.5mm ( DA ) |
| Destructive: 10~55Hz 双振幅 1.5mm ( DA ) | |
| Shock resistance | Functional: 10G Min. |
| Destructive: 100G Min. | |
| Ambient Temperature | -40℃~+85℃ ( No condensation) |
| Unit Weight | Approx. 50g |
| Rated Coil Power | 3W |
| ORDERING INFORMATION | |
| Type designation : |
YC801D |
|
Rated current： |
40A |
| Number of poles : | 1-1 Group |
| Coil voltage : |
6-12 (VDC) |
| Coil power: |
D-Standard power consumption |
Installation Size
Remark ：
1 Unmarked dimensional tolerance .
≤1mm: ±0 2mm ;（1 ~5 ）mm: ±0 3mm ; ≥5mm: ±0 4mm
2 . The tolerance of PCB layout is always: ±0.1mm.
3.Extended terminal dimension is dimension before soldering.
