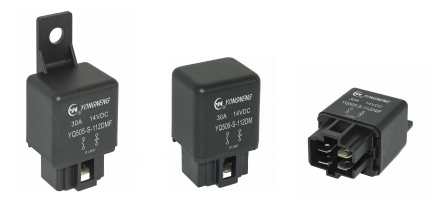

CONTACT DATA | |
Model | YQ505 |
Contact Arrangement |
1A |
Contact Resistance | 50mΩ Max. |
Contact Material | Silver Alloy |
Contact Rating ( Res.Load ) |
30A 14VDC |
Max. Switching Current | 30A |
Max. Switching Voltage | 30VDC |
Max. Switching Power | 420W |
Mechanical endurance | 1x107 OPS |
Electrical endurance | 1x105 OPS |
CHARACTERISTICS | |
Operate Time ( at nomi.volt. ) | 10ms Max. |
Release Time ( without diode ) | 5ms Max. |
Insulation Resistance | 1000MΩ Min.( 500VDC ) |
Dielectric Strength | Between Open Contacts : 500VAC, 50/60Hz 1 min. |
Between Coil & Contacts: 500VAC, 50/60Hz 1 min | |
Vibration resistance | Functional: 10~55Hz 双振幅 1.5mm ( DA ) |
Destructive: 10~55Hz 双振幅 1.5mm ( DA ) | |
Shock resistance | Functional: 10G Min. |
Destructive: 100G Min. | |
Ambient Temperature | -40℃~+125℃ ( No condensation) |
Unit Weight | Approx. 32g |
Rated Coil Power | 0.54W,0.72W,0.9W |
COIL DATA (at 23℃) | ||||||
Rated voltage (VDC) |
Rated current ±10%(mA) |
Coil resistance ±10%(Ω ) |
Max allowable voltage VDC (Max.) |
Operate voltage VDC (Max.) |
Release voltage VDC (Min.) |
Rated coil power (W) |
12 | 120.09 | 100.0 | of rated voltage150 % |
of rated voltage70 % |
of rated voltage10 % |
approx.1.44 |
24 | 60.0 | 400.0 |
ORDERING INFORMATION | |
Type designation : |
YQ505 |
Protective construction : | S-Flux proofed |
Number of poles : | 1-1 Group |
Coil voltage : |
12,24 (VDC) |
Coil power: |
D-1.44 W |
Cover type: |
Nil-Without bracket, F-With bracket |
Contact form : |
M-Form A |
Without bracket |
With bracket |
PCB Layout (Bottom View ) |
Wiring Diagram (Bottom View)
|
![]() |
![]() |
![]() |
![]() |
