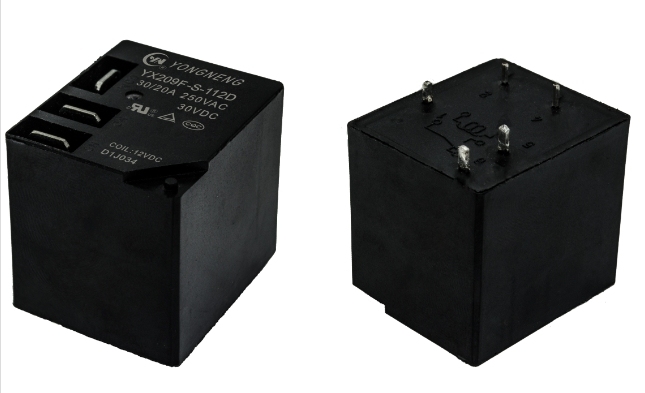

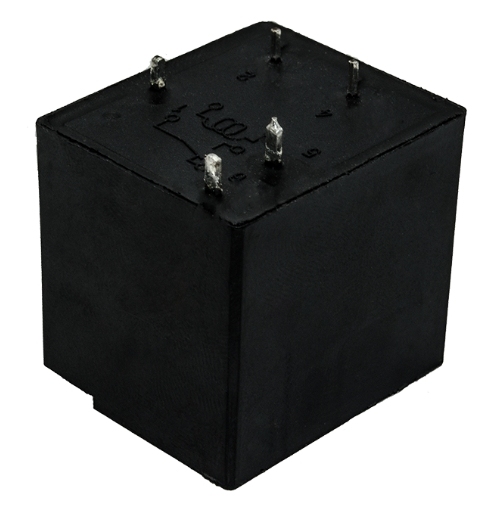

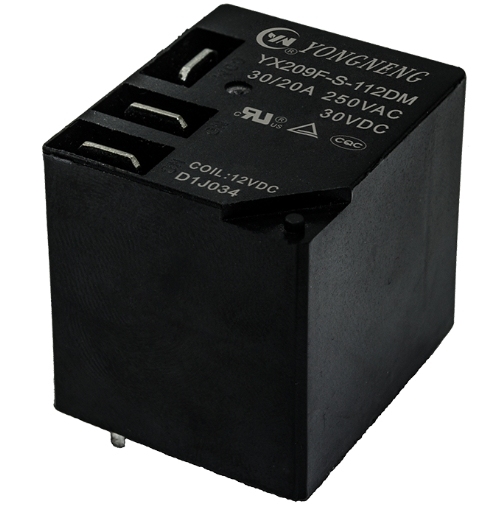

GENERAL PURPOBE POWER RELAY 40A YX209F

Features:

  • High switching capability:40A.
  • Sealed type and open type available.
  • Dielectric strength:4KV optional (between coil & contacts).
  • GENERAL PURPOBE POWER RELAY YX209F
  • GENERAL PURPOBE POWER RELAY YX209F
  • GENERAL PURPOBE POWER RELAY YX209F
Desciption
CONTACT DATA
Model

YX209F

Contact Arrangement 1A,1B,1C
Contact Resistance  100mΩ Max.
Contact Material  Silver Alloy
Contact Rating ( Res.Load )

40A/30A 250VAC/30VDC

Max. Switching Current  40A
Max. Switching Voltage

250VAC/30VDC

Max. Switching Power

10000VA/1200W

Mechanical endurance 1x107 次 OPS
Electrical endurance  1x105 次 OPS

CHARACTERISTICS
Operate Time ( at nomi.volt. )  15ms Max.
 Release Time ( without diode ) 10ms Max.
Insulation Resistance  100MΩ Min.( 500VDC )
Dielectric Strength

Between Open Contacts : 1,500VAC, 50/60Hz 1 min.

Between Coil & Contacts: 2,500VAC, 50/60Hz 1 min.

Between Coil & Contacts: 4,000VAC, 50/60Hz 1 min.(4KV)

Vibration resistance  Functional: 10~55Hz  1.5mm ( DA )
Destructive: 10~55Hz  1.5mm ( DA )
Shock resistance Functional: 10G Min.
Destructive: 100G Min.
Ambient Temperature -40℃~+85℃ ( No condensation)
Unit Weight  Approx. 26g

COIL DATA (at 23℃)
Rated voltage
(VDC)
Rated current
±10%(mA)
Coil resistance
±10%(Ω )
Max allowable voltage
VDC (Max.)
Operate voltage
VDC (Max.)
Release voltage
VDC (Min.)
Rated coil power
(W)
5 185.0 27 of rated voltage130 % of rated voltage75 % of rated voltage5 % approx0.9W
6 150.0 40
9 100.0 90
12 75.0 160
18 50.0 360
24 37.5 640
48 18.8 2,560

110 VAC

7.0

2,820

121 VAC

88 VAC

33 VAC


approx.

1.5VA

220 VAC

6.0

11,300

242 VAC

176 VAC

66 VAC



OUTLINE DIMENSIONS,WIRING DIAGRAM AND PCB LAYOUT (Unit: mm)
Outline Dimensions PCB Layout (Bottom View) Wiring Diagram( Bottom View)

Remark :
1 Unmarked dimensional tolerance .
≤1mm: ±0 2mm ;(1 ~5 )mm: ±0 3mm ; ≥5mm: ±0 4mm
2 . The tolerance of PCB layout is always: ±0.1mm.
3.Extended terminal dimension is dimension before soldering.

CHARACTERISTIC CURVES
