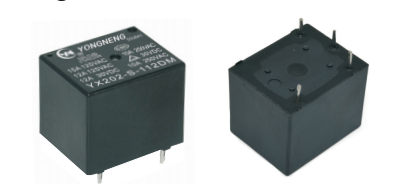

GENERAL PURPOSE POWER RELAY 15A YX202

Features:

  • ontact switching capability:15A.
  • Product comply with IEC 60335-1 available.
  • Subminatrue,standard PCB layout.
  • GENERAL PURPOSE POWER RELAY YX202
Desciption
CONTACT DATA
Model  YX202
Contact Arrangement 1A,1B,1C
Contact Resistance  100mΩ Max.
Contact Material  Silver Alloy
Contact Rating ( Res.Load )

10A 250VAC/30VDC;15A 125VAC

Max. Switching Current  15A
Max. Switching Voltage

277VAC/30VDC

Max. Switching Power

2500VA/300W

Mechanical endurance 1x107 次 OPS
Electrical endurance  1x105 次 OPS

CHARACTERISTICS
Operate Time ( at nomi.volt. )  8ms Max.
 Release Time ( without diode ) 5ms Max.
Insulation Resistance  100MΩ Min.( 500VDC )
Dielectric Strength Between Open Contacts : 750VAC, 50/60Hz 1 min.
Between Coil & Contacts: 1500VAC, 50/60Hz 1 min
Vibration resistance  Functional: 10~55Hz  1.5mm ( DA )
Destructive: 10~55Hz  1.5mm ( DA )
Shock resistance Functional: 10G Min.
Destructive: 100G Min.
Ambient Temperature -40℃~+105℃ ( No condensation)
Unit Weight  Approx. 8.7g

COIL DATA (at 23℃)
Rated voltage
(VDC)
Rated current
±10%(mA)
Coil resistance
±10%(Ω )
Max allowable voltage
VDC (Max.)
Operate voltage
VDC (Max.)
Release voltage
VDC (Min.)
Rated coil power
(W)
3 120.0 25 of rated voltage130 % of rated voltage75 % of rated voltage5 % approx.0.36
5 71.4 70
6 60.0 100
9 40.0 225
12 30.0 400
15 24.0 625
18 20.0 900
24 15.0 1600
48 7.5 6400
60 6.0 10000 of rated voltage130 %







of rated voltage75 %







of rated voltage5 %







approx.0.45







3 150.0 20
5 89.3 56
6 75.0 80
9 50.0 180
12 37.5 320
15 30.0 500
18 25.0 720
24 18.8 1280
48 9.4 5120

ORDERING INFORMATION
Type designation :  YX202
Protective construction : S-Flux proofed
Number of poles : 1-1 Group
Coil voltage : 03,05,06,09,12,18,24,48,60 (VDC)

Coil power :

D-0.36 W (0.45W  optional)

Contact form : Nil-Form C , M-Form A

, B-Form B

Temperature grade :

Nil-85 ℃, F-105 ℃


OUTLINE DIMENSIONS,WIRING DIAGRAM AND PCB LAYOUT (Unit: mm)
Outline Dimensions PCB Layout (Bottom View) Wiring Diagram( Bottom View)

Remark :
1 Unmarked dimensional tolerance .
≤1mm: ±0 2mm ;(1 ~5 )mm: ±0 3mm ; ≥5mm: ±0 4mm
2 . The tolerance of PCB layout is always: ±0.1mm.
3.Extended terminal dimension is dimension before soldering.

CHARACTERISTIC CURVES
