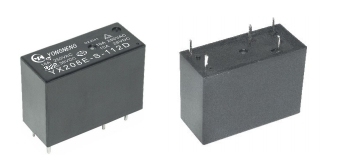

GENERAL PURPOSE POWER RELAY 16a YX208E

Features:
  • High switching capability :16A
  • Product comply with IEC 60335-1 available
  • Dielectric Strength:5KV(between coil& contacts)
  • GENERAL PURPOSE POWER RELAY  YX208E
Desciption
CONTACT DATA
Model  YX208E
Contact Arrangement 1A,1B,1C
Contact Resistance  100mΩ Max.
Contact Material  Silver Alloy
Contact Rating ( Res.Load )

16A 250VAC/30VDC

Max. Switching Current  20A
Max. Switching Voltage

250VAC/30VDC

Max. Switching Power

4000VA/480W

Mechanical endurance 1x107 次 OPS
Electrical endurance  1x105 次 OPS

CHARACTERISTICS
Operate Time ( at nomi.volt. )  15ms Max.
 Release Time ( without diode ) 8ms Max.
Insulation Resistance  1000MΩ Min.( 500VDC )
Dielectric Strength Between Open Contacts : 1000VAC, 50/60Hz 1 min.
Between Coil & Contacts: 5000VAC, 50/60Hz 1 min
Vibration resistance  Functional: 10~55Hz  1.5mm ( DA )
Destructive: 10~55Hz  1.5mm ( DA )
Shock resistance Functional: 10G Min.
Destructive: 100G Min.
Ambient Temperature -40℃~+105℃ ( No condensation)
Unit Weight  Approx. 13.5g

COIL DATA (at 23℃)
Rated voltage
(VDC)
Rated current
±10%(mA)
Coil resistance
±10%(Ω )
Max allowable voltage
VDC (Max.)
Operate voltage
VDC (Max.)
Release voltage
VDC (Min.)
Rated coil power
(W)
5 108.0 46 of rated voltage130 % of rated voltage75 % of rated voltage5 % approx.0.54
6 90.0 67
9 60.0 150
12 45.0 270
18 30.0 600
24 22.5 1067
48 11.3 4267
5 144.0 35



of rated voltage130 %












of rated voltage75 %












of rated voltage5 %











approx.0.72








6 120.0 50
9 80.0 113
12 60.0 200
18 40.0 450
24 30.0 800
48 15.0 3200

ORDERING INFORMATION
Type designation :  YX208E
Protective construction : S-Flux proofed
Number of poles : 1-1 Group
Coil voltage :

05,06,09,12,18,24,48 (VDC)

Coil power :

D-0.54W ( 0.72W optional)

Contact form :

Nil-Form C , M-Form A , B-Form B


OUTLINE DIMENSIONS,WIRING DIAGRAM AND PCB LAYOUT (Unit: mm)

Remark :
1 Unmarked dimensional tolerance .
≤1mm: ±0 2mm ;(1 ~5 )mm: ±0 3mm ; ≥5mm: ±0 4mm
2 . The tolerance of PCB layout is always: ±0.1mm.
3.Extended terminal dimension is dimension before soldering.

CHARACTERISTIC CURVES
