| CONTACT DATA | |
| Type |

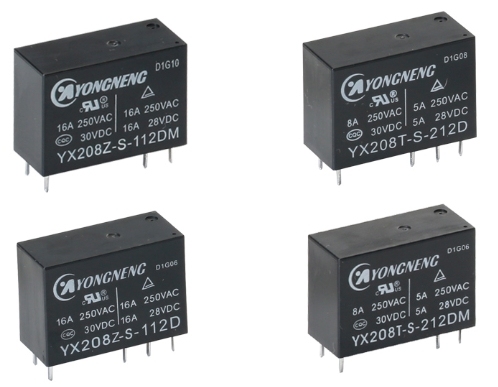

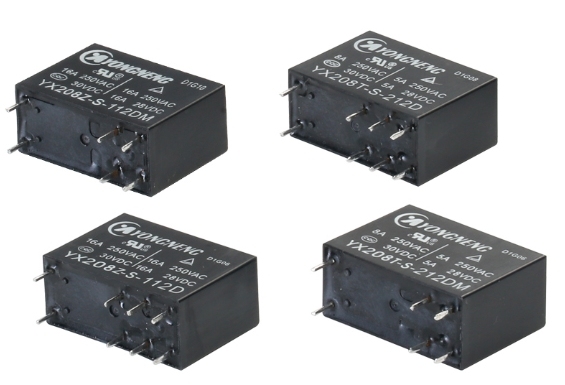

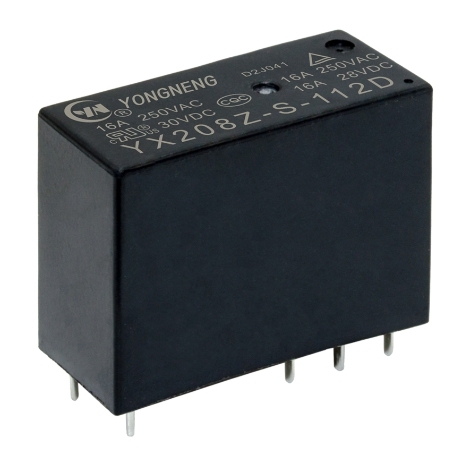

General Purpose Power Relay |
| Model |
YX208Z |
| Contact Arrangement | 1A,1B,1C |
| Contact Resistance | 100mΩ Max. |
| Contact Material | Silver Alloy |
| Contact Rating ( Res.Load ) |
16A 250VAC/30VDC |
| Max. Switching Current |
16A |
| Max. Switching Voltage |
250VAC/30VDC |
| Max. Switching Power |
4000VA/480W |
| Mechanical endurance | 1x107 次 OPS |
| Electrical endurance | 1x105 次 OPS |
| CHARACTERISTICS | |
| Operate Time ( at nomi.volt. ) | 15ms Max. |
| Release Time ( without diode ) | 8ms Max. |
| Insulation Resistance | 100MΩ Min.( 500VDC ) |
| Dielectric Strength |
Between Open Contacts : 1,000VAC, 50/60Hz 1 min |
|
Between Open Contacts : 1,000VAC, 50/60Hz 1 min |
|
| Ambient Temperature | -40℃~+105℃ ( No condensation) |
| Unit Weight | Approx.15g |
