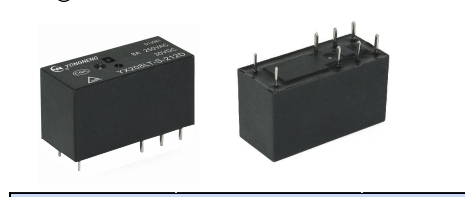

| CONTACT DATA | |
| Model |
YX208LT |
| Contact Arrangement |
2A 、2B、2C |
| Contact Resistance |
100mΩ Max. |
| Contact Material |
Silver Alloy |
| Contact Rating ( Res.Load ) |
8A 250VAC/30VDC |
| Max. Switching Current |
8A |
| Max. Switching Voltage |
250VAC/30VDC |
| Max. Switching Power |
2000VA/240W |
| Mechanical endurance |
1x10 7 次 OPS |
| Electrical endurance |
1x10 5 次 OPS |
| CHARACTERISTICS | |
| Operate Time ( at nomi.volt. ) | 15ms Max. |
| Release Time ( without diode ) | 10ms Max. |
| Insulation Resistance | 100MΩ Min.( 500VDC ) |
| Dielectric Strength |
Between Open Contacts :1000VAC, 50/60Hz 1 min. |
| Between Coil & Contacts: 5000VAC, 50/60Hz 1 min | |
|
Between Contact sets : 2500VAC, 50/60Hz 1 min |
|
| Vibration resistance | Functional: 10~55Hz 1.5mm ( DA ) |
| Destructive: 10~55Hz 1.5mm ( DA ) | |
| Shock resistance | Functional: 10G Min. |
| Destructive: 100G Min. | |
| Ambient Temperature | -40℃~+125℃ ( No condensation) |
| Unit Weight | Approx. 12.5g |
| Rated voltage (VDC) |
Rated current ±10%(mA) |
Coil resistance ±10%(Ω ) |
Max allowable voltage VDC (Max.) |
Operate voltage VDC (Max.) |
Release voltage VDC (Min.) |
Rated coil power (W) |
| 3 | 133.3 | 23 | of rated voltage150 % |
of rated voltage75 % |
of rated voltage5 % |
approx.0.4 |
| 5 | 80.0 | 63 | ||||
| 6 | 66.7 | 90 | ||||
| 9 | 44.4 | 203 | ||||
| 12 | 33.3 | 360 | ||||
| 15 | 26.7 | 563 | ||||
| 18 | 22.2 | 810 | ||||
| 24 | 16.7 | 1.440 | ||||
| 36 | 11.1 | 3240 | ||||
| 48 | 8.3 | 5.760 |
OUTLINE DIMENSIONS,WIRING DIAGRAM AND PCB LAYOUT (Unit: mm)
Remark ：
1 Unmarked dimensional tolerance .
≤1mm: ±0 2mm ;（1 ~5 ）mm: ±0 3mm ; ≥5mm: ±0 4mm
2 . The tolerance of PCB layout is always: ±0.1mm.
3.Extended terminal dimension is dimension before soldering.
CHARACTERISTIC CURVES
