| CONTACT DATA | |

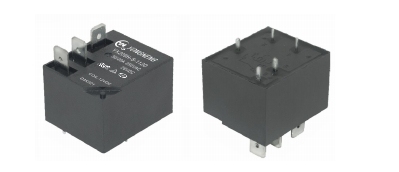

| Model |
YX209H |
| Contact Arrangement | 1A，1B，1C |
| Contact Resistance | 100mΩ Max. |
| Contact Material | Silver Alloy |
| Contact Rating ( Res.Load ) |
40A/30A 250VAC/30VDC |
| Max. Switching Current | 40A |
| Max. Switching Voltage |
250VAC/30VDC |
| Max. Switching Power |
10000VA/1200W |
| Mechanical endurance | 1x107 次 OPS |
| Electrical endurance | 1x105 次 OPS |
| CHARACTERISTICS | |
| Operate Time ( at nomi.volt. ) | 15ms Max. |
| Release Time ( without diode ) | 10ms Max. |
| Insulation Resistance | 100MΩ Min.( 500VDC ) |
| Dielectric Strength |
Between Open Contacts : 1,500VAC, 50/60Hz 1 min. |
|
Between Coil & Contacts: 2,500VAC, 50/60Hz 1 min. |
|
|
Between Coil & Contacts: 4,000VAC, 50/60Hz 1 min.（4KV） |
|
| Vibration resistance | Functional: 10~55Hz 1.5mm ( DA ) |
| Destructive: 10~55Hz 1.5mm ( DA ) | |
| Shock resistance | Functional: 10G Min. |
| Destructive: 100G Min. | |
| Ambient Temperature | -40℃~+85℃ ( No condensation) |
| Unit Weight | Approx.28.8g |
| COIL DATA (at 23℃) | ||||||
| Rated voltage (VDC) |
Rated current ±10%(mA) |
Coil resistance ±10%(Ω ) |
Max allowable voltage VDC (Max.) |
Operate voltage VDC (Max.) |
Release voltage VDC (Min.) |
Rated coil power (W) |
| 5 | 185.0 | 27 | of rated voltage130 % | of rated voltage75 % | of rated voltage5 % | approx0.9W |
| 6 | 150.0 | 40 | ||||
| 9 | 100.0 | 90 | ||||
| 12 | 75.0 | 160 | ||||
| 18 | 50.0 | 360 | ||||
| 24 | 37.5 | 640 | ||||
| 48 | 18.8 | 2,560 | ||||
|
110 VAC |
7.0 |
2,820 |
121 VAC |
88 VAC |
33 VAC |
approx. 1.5VA |
|
220 VAC |
6.0 |
11,300 |
242 VAC |
176 VAC |
66 VAC |
|
OUTLINE DIMENSIONS,WIRING DIAGRAM AND PCB LAYOUT (Unit: mm)
| Outline Dimensions | PCB Layout (Bottom View) | Wiring Diagram( Bottom View) |
 |
 |
 |
Remark ：
1 Unmarked dimensional tolerance .
≤1mm: ±0 2mm ;（1 ~5 ）mm: ±0 3mm ; ≥5mm: ±0 4mm
2 . The tolerance of PCB layout is always: ±0.1mm.
3.Extended terminal dimension is dimension before soldering.
CHARACTERISTIC CURVES
