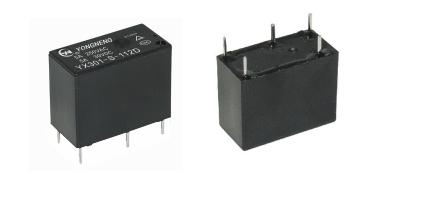

| CONTACT DATA | |
| Model |
YX301 |
| Contact Arrangement | 1A，1B，1C |
| Contact Resistance | 100mΩ Max. |
| Contact Material | Silver Alloy |
| Contact Rating ( Res.Load ) |
10A 250VAC ; 5A 250VAC |
| Max. Switching Current |
10A |
| Max. Switching Voltage |
277VAC/30VDC |
| Max. Switching Power |
2500VA/150W |
| Mechanical endurance | 1x107 次 OPS |
| Electrical endurance | 1x105 次 OPS |
| CHARACTERISTICS | |
| Operate Time ( at nomi.volt. ) | 10ms Max. |
| Release Time ( without diode ) | 5ms Max. |
| Insulation Resistance | 100MΩ Min.( 500VDC ) |
| Dielectric Strength |
Between Open Contacts : 1,000VAC, 50/60Hz 1 min. |
|
Between Coil & Contacts: 4,000VAC, 50/60Hz 1 min |
|
| Vibration resistance | Functional: 10~55Hz 1.5mm ( DA ) |
| Destructive: 10~55Hz 1.5mm ( DA ) | |
| Shock resistance | Functional: 10G Min. |
| Destructive: 100G Min. | |
| Ambient Temperature | -40℃~+105℃ ( No condensation) |
| Unit Weight | Approx.6.5g |
| COIL DATA (at 23℃) | ||||||
| Rated voltage (VDC) |
Rated current ±10%(mA) |
Coil resistance ±10%(Ω ) |
Max allowable voltage VDC (Max.) |
Operate voltage VDC (Max.) |
Release voltage VDC (Min.) |
Rated coil power (W) |
| 3 | 66.7 | 45 | ||||
| 5 | 40.0 | 45 | of rated voltage130 % | of rated voltage75 % | of rated voltage5 % | approx0.2 |
| 6 | 33.3 | 180 | ||||
| 9 | 22.2 | 405 | ||||
| 12 | 16.7 | 720 | ||||
| 15 | 13.3 | 1,125 | ||||
| 18 | 11.1 | 1,620 | ||||
| 24 | 8.3 | 2,880 | ||||
| 36 | 5.6 | 6,480 | ||||
| 48 | 4.2 | 11,520 | ||||
| Rated voltage (VDC) |
Rated current ±10%(mA) |
Coil resistance ±10%(Ω ) |
Max allowable voltage VDC (Max.) |
Operate voltage VDC (Max.) |
Release voltage VDC (Min.) |
Rated coil power (W) |
| 3 | 113.3 | 22.5 | ||||
| 5 | 80.0 | 62.5 | of rated voltage130 % | of rated voltage75 % | of rated voltage5 % | approx0.4 |
| 6 | 66.7 | 90 | ||||
| 9 | 44.4 | 202.5 | ||||
| 12 | 33.3 | 360 | ||||
| 15 | 26.7 | 562.5 | ||||
| 18 | 22.2 | 810 | ||||
| 24 | 16.7 | 1,440 | ||||
| 36 | 11.1 | 3,240 | ||||
| 48 | 8.2 | 5,760 |
OUTLINE DIMENSIONS,WIRING DIAGRAM AND PCB LAYOUT (Unit: mm)
| Outline Dimensions | PCB Layout (Bottom View) | Wiring Diagram( Bottom View) |
 |
 |
 |
Remark ：
1 Unmarked dimensional tolerance .
≤1mm: ±0 2mm ;（1 ~5 ）mm: ±0 3mm ; ≥5mm: ±0 4mm
2 . The tolerance of PCB layout is always: ±0.1mm.
3.Extended terminal dimension is dimension before soldering.
CHARACTERISTIC CURVES
