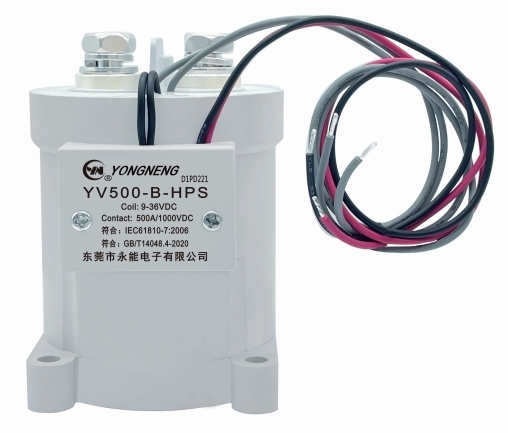

High Voltage DC Relay Contactor 500A YV500

Product Description

Functional Role and Target Applications

This High Voltage DC Relay Contactor 500A YV500 is engineered specifically for electrical system integrators and engineers requiring high-capacity, reliable switching components. It targets users in renewable energy and power management sectors, where durability under dynamic currents is critical. The device accommodates forward and reverse current flows with polarity-free contact wiring, simplifying installation for ups relay systems and inverter relay configurations. Its compact footprint is optimized for integration into space-constrained environments, serving professionals tasked with ensuring robust current control in advanced circuit designs.

Technical Specifications and Performance Metrics

Constructed with a high-purity nitrogen environment and permanent neodymium iron boron magnets, the 500A relay contactor delivers superior mechanical and electrical endurance. Rated for contact switching at 500A and able to withstand currents up to 1500A in brief intervals, its insulation resistance reaches 1,000MΩ with dielectric strength exceeding 2,500VAC. The built-in energy-saving circuit boards with bi-directional voltage control enhance efficiency in solar relay applications. These measurable traits, including a maximum switching current of 5000A at 320VDC, ensure reliable performance in high power and highly demanding industrial conditions.

Industry Applications and Operational Integration

The YV500 finds application in critical infrastructures such as electric vehicle charging stations, solar energy storage systems, and high-current heating system controls. It functions as a key component in ups relay assemblies, delivering consistent switching capabilities under heavy electrical loads. The product’s ability to handle dynamic current flow supports seamless switching in inverter relay systems and ensures adherence to stringent operational standards. Its endurance and compact design facilitate integration into modular assemblies, thereby improving system reliability and reducing maintenance downtime in demanding industrial workflows.

Design and Structural Strengths for Enhanced Durability

The 500A YV500 relay contactor features a compact design leveraging an internal nitrogen environment that stabilizes the contacts and minimizes oxidation in high-voltage settings. Integration of durable permanent magnets supports reliable magnetic flux management, critical in maintaining operational consistency for a 40 amp relay equivalent within a high-capacity form factor. The relay is built to accommodate polarity-free wiring, simplifying system designs, particularly in complex inverter relay and solar relay configurations. Its sturdy mechanical construction and enhanced insulation parameters promote long-term resilience and ease of integration into advanced electrical assemblies.

Optimized User Experience and Operational Efficiency

This high voltage relay provides exceptional ease of installation with no polarity constraints, significantly reducing engineering labor during system assembly. Its built-in energy-saving circuit boards improve operational efficiency, directly benefitting users managing ups relay installations with strict energy consumption targets. The relay’s high mechanical endurance translates into extended service intervals, decreasing downtime and lifecycle costs. Additionally, the capability to handle a range of currents, including typical loads such as 80a relay or 100a relay circuits, ensures versatile deployment across various power management systems, enhancing overall user value.
