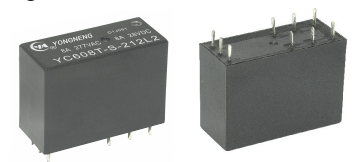

| CONTACT DATA | |
| Model |
YC608T |
| Contact Arrangement |
2A 、2C |
| Contact Resistance |
100 mΩ Max. |
| Contact Material | Silver Alloy |
| Contact Rating ( Res.Load ) | 8A 250VAC
/30VDC |
| Max. Switching Current | 8A |
| Max. Switching Voltage | 277VAC/30VDC |
| Max. Switching Power | 2000VA/340W |
| Mechanical endurance | 1x107 次 OPS |
| Electrical endurance | 1x105 次 OPS |
| CHARACTERISTICS | |
|
Set Time ( at nomi.volt.) |
10ms Max. |
| Release Time ( without diode ) | 10ms Max. |
| Insulation Resistance | 1000MΩ Min.( 500VDC ) |
| Dielectric Strength | Between Open Contacts : 1,000VAC, 50/60Hz 1 min. |
| Between Coil & Contacts: 4,500VAC, 50/60Hz 1 min | |
| Vibration resistance | Functional: 10~55Hz 1.5mm ( DA ) |
| Destructive: 10~55Hz 1.5mm ( DA ) | |
| Shock resistance | Functional: 10G Min. |
| Destructive: 100G Min. | |
| Ambient Temperature | -40℃~+105℃ ( No condensation) |
| Unit Weight | Approx. 13.5g |
| COIL DATA (at 23℃) | ||||||
| Rated voltage (VDC) |
Rated current ±10%(mA) |
Coil resistance ±10%(Ω ) |
Pulse duration ms (Min.) |
Operate voltage VDC (Max.) |
Release voltage VDC (Max.) |
Rated coil power (W) |
| 5 |
108.0 |
47 |
|
75 % |
of rated voltage 75 % |
( single coil ) |
| 6 |
90.0 |
68 | ||||
| 9 |
60.0 |
150 | ||||
| 12 |
45.0 |
270 | ||||
| 18 |
30.0 |
600 | ||||
| 24 |
22.5 |
1100 | ||||
| 48 |
11.3 |
4400 | ||||
| 5 |
144.0 |
35 | 50ms |
of rated voltage 75 % |
of rated voltage 75 % |
approx. 0.72 ( dual coil ) |
| 6 |
120.0 |
50 | ||||
| 9 |
80.0 |
112 |
||||
| 12 |
60.0 |
200 |
||||
| 18 | 40.0 |
450 |
||||
| 24 | 30.0 |
820 |
||||
| 48 | 15.0 |
3300 |
||||
| ORDERING INFORMATION | |
| Type designation : |
YC608T |
| Number of poles : | 2-2 Group |
| Coil voltage : |
05,06,09,12,15,18,24,36,48 (VDC) |
|
Protective construction : |
S-Flux proofed , SH-Sealed type |
| Contact form : |
Nil-Form C , M-Form A |
|
Coil type: |
L1- Single coil 0.54W; L2- Dual coil 0.72W. |
|

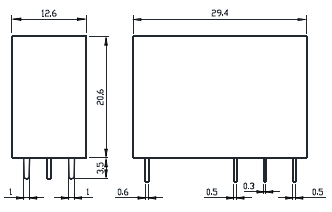

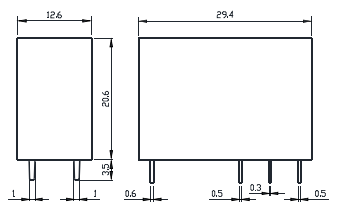

Outline Dimensions |

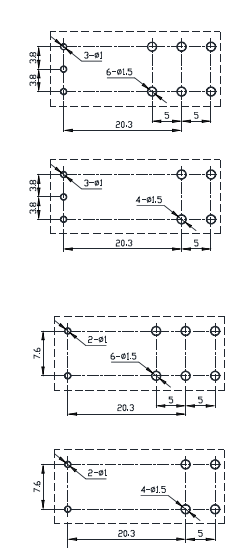

PCB Layout (Bottom View) |

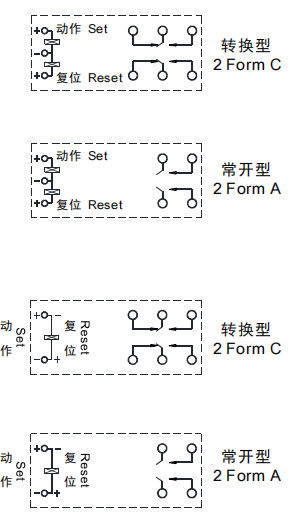

Wiring Diagram( Bottom View) |
|
Dual coil  Single coil |
 |
 |
Remark ：
1 Unmarked dimensional tolerance .
≤1mm: ±0 2mm ;（1 ~5 ）mm: ±0 3mm ; ≥5mm: ±0 4mm
2 . The tolerance of PCB layout is always: ±0.1mm.
3.Extended terminal dimension is dimension before soldering.
