| CONTACT DATA | |
| Model |

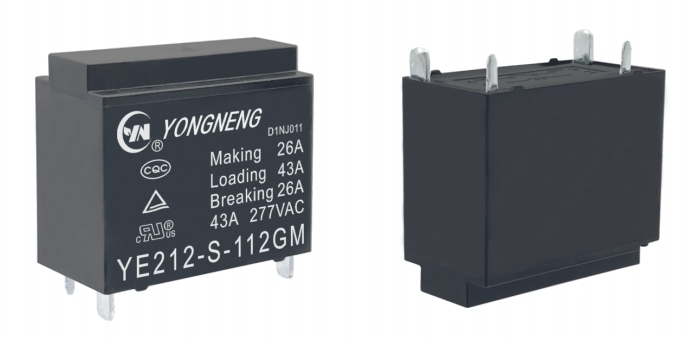

YE212 |
| Contact Arrangement | 1A |
| Contact Resistance | 100mΩ Max. |
| Contact Material | Silver Alloy |
| Contact Rating ( Res.Load ) |
26/33/35/43A |
| Max. Switching Current | 50A |
| Max. Switching Voltage |
480VDC |
| Max. Switching Power |
24000VA |
| Mechanical endurance | 5x104 次 OPS |
| Electrical endurance | 1x105 次 OPS |
| CHARACTERISTICS | |
| Operate Time ( at nomi.volt. ) | 20ms Max. |
| Release Time ( without diode ) | 10ms Max. |
| Insulation Resistance | 100MΩ Min.( 500VDC ) |
| Dielectric Strength |
Between Open Contacts : 1,000VAC, 50/60Hz 1 min. |
|
Between Coil & Contacts: 4,500VAC, 50/60Hz 1 min. |
|
| Shock resistance | Destructive: 100G Min. Functional: 10G Min. |
| Ambient Temperature | -40℃~+85℃ ( No condensation) |
| Rated Coil Power | 1.4W, 1.6W |
