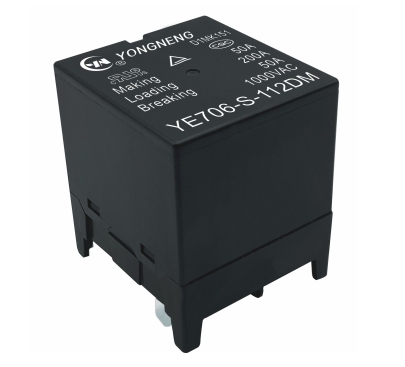

New Energy 200A Relay YE706

Product Description

Functional Positioning and Target Users of the 200a relay YE706

The 200a relay YE706 is engineered as a heavy-duty switching solution targeting industrial customers, electrical engineers, and system integrators seeking reliable high current relays for power management tasks. As a product from a reputable new energy relay manufacturer, it serves critical roles in electric power systems where switching loads up to 200A are required. Its availability in sealed and open types provides versatility across applications where protection from environmental factors is a priority. This relay effectively accommodates design engineers prioritizing long-term system stability and precise switching control in environments demanding a high voltage relay for robust circuit management.

Technical Features and Specifications of the 200a relay YE706

This 200a relay delivers impressive technical capabilities, including a maximum switching current of 200A and voltage handling up to 1000VAC, positioning it as a high voltage relay supplier’s flagship for power electronics. Its silver alloy contacts ensure enhanced conductivity and reliable electrical endurance rated at 30,000 operations, while mechanical endurance reaches one million cycles. The device demonstrates high dielectric strength to 5,000VAC between coil and contacts and rapid operate and release times under 35 milliseconds, providing responsive switching necessary in dynamic electrical environments. The ambient temperature tolerance from -40°C to +105°C guarantees stability in variable conditions, confirming its utility among high current relays designed for critical energy systems.

Industry Applications and Real-World Value of the 200a relay YE706

Commonly integrated into renewable energy power conversion units and battery management systems, this 200a relay exemplifies quality from a noted new energy relay manufacturer renowned for compliance with industry standards. It finds extensive use in high voltage relay installations requiring dependable load switching and environmental sealing, critical for harsh industrial settings such as power distribution panels and test facilities. Its rapid switching capability and robust contact material enhance operational durability, supporting long service life and minimal maintenance. Users gain a cost-effective solution that increases system reliability and efficiency, vital for upgrading infrastructure and maintaining uninterrupted power flow in modern electrical installations.

Structural and Design Advantages of the 200a relay YE706

The 200a relay features a meticulously engineered structure optimized for high current relays applications, including a modular design that simplifies integration into complex electrical panels. The availability of both sealed and open enclosure types allows adaptability depending on environmental exposure, ensuring reliability when exposed to dust or moisture. Designed by a leading new energy relay manufacturer, it incorporates strong dielectric insulation rated at 5,000VAC between coil and contacts, securing operational safety at elevated voltages. This high voltage relay supplier’s product is constructed using silver alloy contacts to minimize resistance and contact wear, thereby enabling extended mechanical endurance and improved service intervals.

Performance and Usability Benefits of the 200a relay YE706

The 200a relay excels in delivering swift and precise switching, with operate and release times under 35 milliseconds facilitating rapid response in high voltage relay applications. High current relays of this model maintain constant performance over a wide thermal range (-40℃ to +105℃) without degradation, thus minimizing system downtime. Users benefit from consistent insulation resistance exceeding 1000 MΩ and minimal contact resistance (1 mΩ), optimizing energy efficiency and reducing losses in operational circuits. Furthermore, this relay’s robust shock resistance ensures reliability in vibration-prone environments, making it highly suitable for power electronics and critical control systems requiring durable and accurate relay switching.
