Product Description

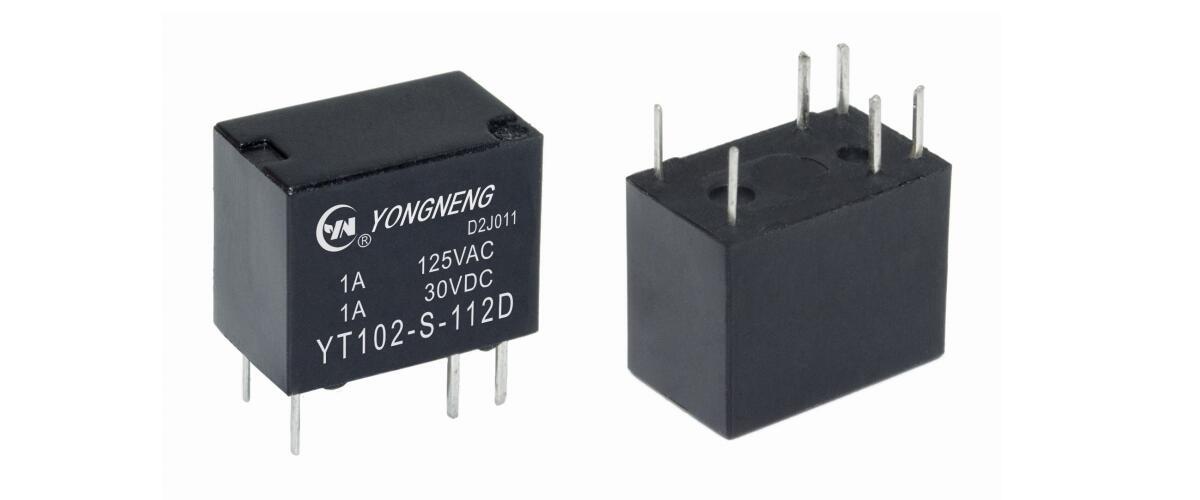

The signal relay YT102 is engineered specifically for applications requiring reliable signal switching with minimal spatial footprint. Its design suits engineers and system integrators who need compact, energy-efficient components. As a subminiature signal relay, it addresses challenges in modern electronic assemblies that demand both space saving and consistent contact performance. Our customers, ranging from communication equipment developers to automation control manufacturers, benefit from its fine-tuned switching capabilities, enabling streamlined integration within complex control architectures where signal integrity is paramount.
Featuring a silver alloy contact system with a maximum contact resistance of 100mΩ, the YT102 supports 1A at 125VAC or 30VDC, maintaining signal fidelity under low current load conditions. Its coil power consumption is limited to 150mW, promoting system energy efficiency. The relay operates with a fast switching time of under 5 milliseconds, complemented by mechanical endurance rated at 10 million operations and electrical endurance of 100,000 cycles, ensuring prolonged lifecycle even in intensive industrial environments. These measurable specifications showcase the relay’s robustness and reliability expected from professional signal relay manufacturers.
The YT102 is widely adopted across sectors such as telecommunications, instrumentation, and industrial automation, where compactness and high reliability are crucial. It functions efficiently in circuit isolation, signal routing, and low-current switching tasks, thereby enhancing overall system performance and safety compliance. Signal relay suppliers incorporate this model in OEM products and PCB layouts with limited space, leveraging its ability to maintain operational integrity under challenging temperature ranges and high vibration environments. Its broad compatibility facilitates seamless integration into diverse industrial workflows demanding stable and precise signal control.
The signal relay YT102 presents a meticulously engineered structure tailored for integration into dense circuit boards. As a subminiature signal relay, its compact dimensions minimize spatial demands without sacrificing performance thresholds. The silver alloy contacts ensure consistent conduction, while multiple coil voltage options enhance adaptability across various control schemes. This design philosophy enables system architects and signal relay manufacturers to implement it across a broad range of electronic frameworks requiring modular and scalable relay components, enhancing overall system robustness while maintaining compliance with international manufacturing standards.
Our signal relay supplier offers the YT102 model with emphasis on delivering operational reliability and ease of application. The fast operate/release time supports applications dependent on timely signal transitions, reducing latency in control responses. Its extended mechanical and electrical endurance contribute to reduced maintenance cycles and higher return on investment for end users. Additionally, the relay’s tolerance to temperature extremes and mechanical shock allows its deployment in demanding industrial scenarios, offering signal relay manufacturers a dependable solution that balances high performance with longevity and operational stability.
| CONTACT DATA | |
| Model | YX102 |
| Contact Arrangement | 1C |
| Contact Resistance | 100mΩ Max. |
| Contact Material | Silver Alloy |
| Contact Rating ( Res.Load ) | 1A 125VAC/30VDC |
| Max. Switching Current | 1A |
| Max. Switching Voltage | 125VAC/30VDC |
| Max. Switching Power | 125VA/30W |
| Mechanical endurance | 1x107 次 OPS |
| Electrical endurance | 1x105 次 OPS |
| CHARACTERISTICS | |
| Operate Time ( at nomi.volt. ) | 5ms Max. |
| Release Time ( without diode ) | 5ms Max. |
| Insulation Resistance | 1000MΩ Min.( 500VDC ) |
| Dielectric Strength | Between Open Contacts : 500VAC, 50/60Hz 1 min. |
| Between Coil & Contacts: 1,000VAC, 50/60Hz 1 min | |
| Vibration resistance | Functional: 10~55Hz 双振幅 1.5mm ( DA ) |
| Destructive: 10~55Hz 双振幅 1.5mm ( DA ) | |
| Shock resistance | Functional: 10G Min. |
| Destructive: 50G Min. | |
| Ambient Temperature | -40℃~+85℃ ( No condensation) |
| Unit Weight | Approx. 2g |
| COIL DATA (at 23℃) | ||||||
| Rated voltage (VDC) |
Rated current ±10%(mA) |
Coil resistance ±10%(Ω ) |
Max allowable voltage VDC (Max.) |
Operate voltage VDC (Max.) |
Release voltage VDC (Min.) |
Rated coil power (W) |
| 3 | 50.0 | 60 | of rated voltage150 % |
of rated voltage75 % |
of rated voltage5 % |
approx.0.15 |
| 5 | 30.0 | 167 | ||||
| 6 | 25.0 | 240 | ||||
| 9 | 16.7 | 540 | ||||
| 12 | 12.5 | 960 | ||||
| 24 | 6.3 | 3,840 | ||||
| 3 | 66.7 | 45 | of rated voltage130 % | of rated voltage75 % |
of rated voltage5 % |
approx.0.20 |
| 5 | 40.0 | 125 | ||||
| 6 | 33.3 | 180 | ||||
| 9 | 22.2 | 405 | ||||
| 12 | 16.7 | 720 | ||||
| 24 | 8.3 | 2,880 | ||||
| ORDERING INFORMATION | |
| Type designation : | YT102 |
| Protective construction : | S-Flux proofed, SH-Sealed type |
| Number of poles : | 1-1 Group |
| Coil voltage : | 03,05,06,09,12,24 (VDC) |
| Coil power: | D-0.20 W，L-0.15W |
| Contact form : | Nil-Form C |
| Outline Dimensions | PCB Layout (Bottom View) | Wiring Diagram( Bottom View) |
 |
 |
 |
