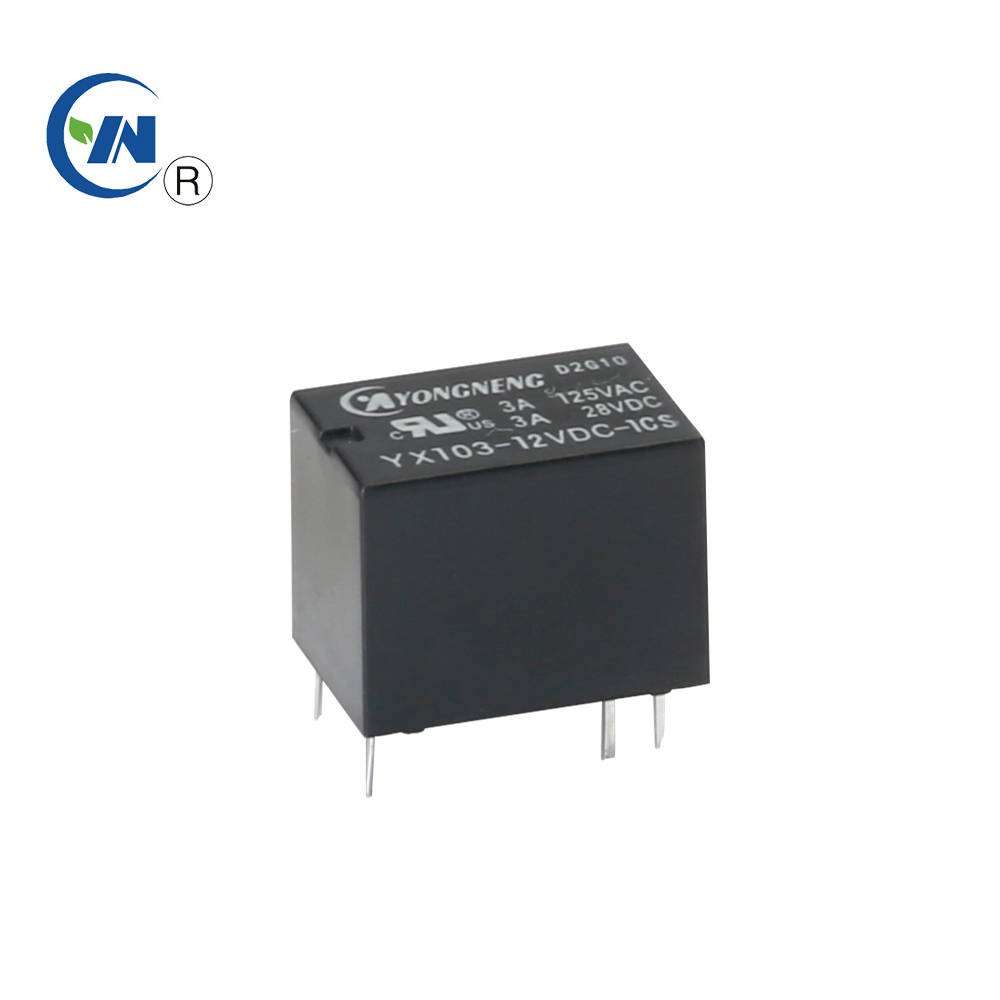

SUBMINIATURE SIGAL RELAY YX103

Features:
Switching capability:3A
200mWHigh Sensitivity :200W coil power
Smallsize:(15.5x10.6x11.5)mm
  • YX103
  • SUBMINIATURE SIGAL RELAY YX103
Desciption
CONTACT DATA
Model  YX103
Contact Arrangement 1C
Contact Resistance  100mΩ Max.
Contact Material  Silver Alloy
Contact Rating ( Res.Load )

3A 125VAC/28VDC

Max. Switching Current  3A
Max. Switching Voltage  125VAC/30VDC
Max. Switching Power

375VA/90W

Mechanical endurance 1x107 次 OPS
Electrical endurance  1x105 次 OPS

CHARACTERISTICS
Operate Time ( at nomi.volt. )  10ms Max.
 Release Time ( without diode ) 4ms Max.
Insulation Resistance  100MΩ Min.( 500VDC )
Dielectric Strength Between Open Contacts : 500VAC, 50/60Hz 1 min.
Between Coil & Contacts: 750VAC, 50/60Hz 1 min
Vibration resistance  Functional: 10~55Hz  1.5mm ( DA )
Destructive: 10~55Hz  1.5mm ( DA )
Shock resistance Functional: 10G Min.
Destructive: 100G Min.
Ambient Temperature -40℃~+85℃ ( No condensation)
Unit Weight  Approx. 3.6g

COIL DATA (at 23℃)
Rated voltage
(VDC)
Rated current
±10%(mA)
Coil resistance
±10%(Ω )

Max allowable voltage VDC (Max.)

Operate voltage
VDC (Max.)
Release voltage
VDC (Min.)
Rated coil power
(W)
3

66.7

45

of rated voltage 130%




of rated voltage175 %









of rated voltage5 %









approx.0.2






5 40.0  125
6 33.3 180
9 22.2 405
12 16.7 720
24 8.3  2880
3 120.0 25

of rated voltage 130%




of rated voltage75 %





of rated voltage5 %





approx.0.36



5 72.0 69
6 60.0 100
9 40.0 225
12 30.0 400
24 15.0 1600
3 150.0  20 of rated voltage 130%


of rated voltage75 %









of rated voltage5 %









approx.0.45






5 90.0  56
6 75.0 80
9 50.0 180
12 37.5 320
24 18.8 1280

ORDERING INFORMATION
Type designation : YX103
Protective construction : S-Flux proofed
Number of poles : 1-1 Group
Coil voltage : 03,05,06,09,12,24 (VDC)
Coil power: D-0.36 W,L-0.2W

(0.15W  optional)

Contact form :  Nil-Form C

OUTLINE DIMENSIONS,WIRING DIAGRAM AND PCB LAYOUT (Unit: mm)
Outline Dimensions PCB Layout (Bottom View) Wiring Diagram( Bottom View)

Remark :
1 Unmarked dimensional tolerance .
≤1mm: ±0 2mm ;(1 ~5 )mm: ±0 3mm ; ≥5mm: ±0 4mm
2 . The tolerance of PCB layout is always: ±0.1mm.
3.Extended terminal dimension is dimension before soldering.

CHARACTERISTIC CURVES
