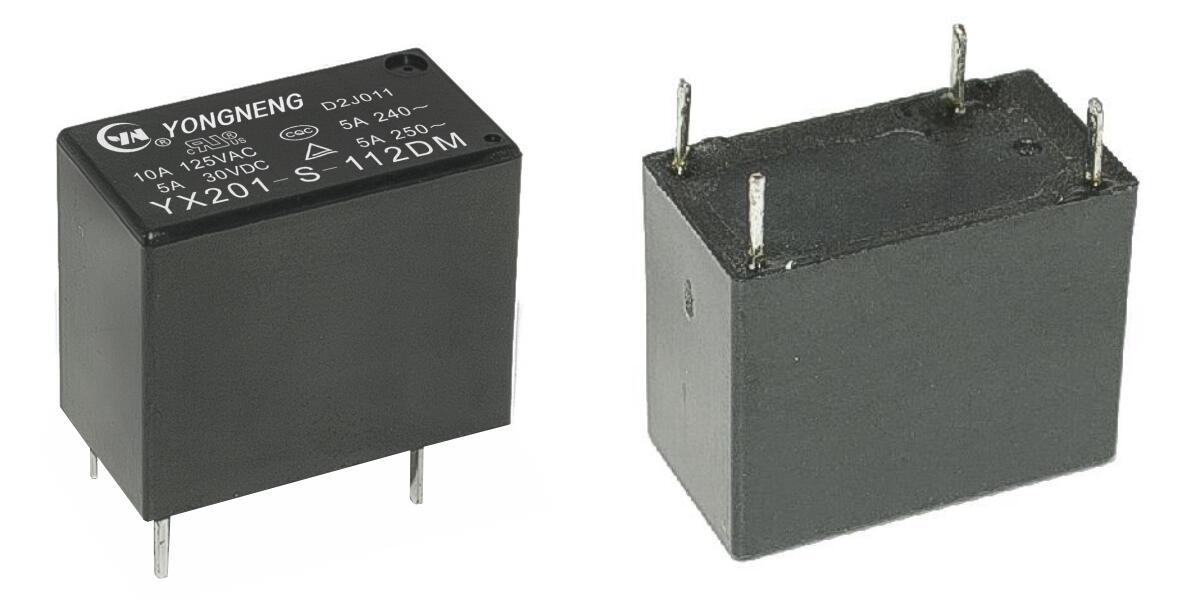

The YX201/YX201H signal relay series is engineered for professionals requiring reliable and sensitive switching components in complex electrical circuits. This product targets system integrators, engineers, and procurement managers needing a robust switching solution capable of tolerating frequent operations and demanding load conditions. As a compact subminiature signal relay, it facilitates efficient electrical isolation and control within both industrial and residential automation environments. This series supports applications where precise power management and long-term operational stability are essential, addressing the exacting requirements of developers seeking high endurance in their relay selections from reputable signal relay manufacturers.
This subminiature signal relay features a coil power rating of 200mW, delivering high sensitivity and energy efficiency. Its silver alloy contacts support switching currents up to 10A at 250VAC, ensuring dependable load handling. The design complies with IEC 60335-1 safety standards, guaranteeing performance and regulatory adherence. Mechanical endurance reaches 10 million cycles and electrical endurance 100,000 cycles, reflecting extensive durability. Dielectric strength between coil and contacts is rated at 4000VAC for one minute, while surge voltage resistance up to 6KV enhances operational safety. The relay’s compact form factor and low coil power consumption simplify integration into space-constrained systems, making it a preferred component among signal relay suppliers catering to high-performance requirements.
As a versatile signal relay, the YX201/YX201H series serves critical functions in industrial automation, HVAC systems, smart homes, and testing instrumentation. Its compliance with stringent safety norms facilitates use in fault-tolerant control architectures. The relay’s performance supports automated circuit switching, energy-saving devices, and replacement of conventional power relays without compromising reliability. Its subminiature profile aids seamless incorporation into miniature control panels and remote control devices, benefiting engineering teams focused on compact, efficient systems. By providing consistent switching under diverse environmental conditions, this signal relay from leading signal relay manufacturers adds measurable value to system uptime and maintenance cycles.
The design of the YX201/YX201H integrates a flux-proof protective construction that ensures contamination resistance and operational reliability in harsh environments. Its single-pole configuration with silver alloy contacts optimizes electrical conduction efficiency and resistance to wear, extending functional lifespan. The low coil power design reduces overall power consumption, which is critical for applications requiring energy-efficient switching. From a mechanical perspective, the compact size facilitates modular hardware arrangements, enabling simpler circuit board layouts and system compactness. These attributes position this subminiature signal relay as an adaptable and robust solution favored by signal relay manufacturers focusing on both performance and ease of integration.
Performance-wise, this signal relay provides rapid operate and release times (≤10ms and ≤5ms respectively), supporting precise control in time-critical switching scenarios. It demonstrates excellent vibration and shock resistance, ensuring consistency in industrial applications prone to mechanical stresses. The high insulation resistance and surge voltage capacity safeguard both relay and circuit integrity. For end users, this translates into reduced downtime, minimized maintenance costs, and reliable circuit protection. The availability in multiple coil voltages allows customization to specific system requirements. Overall, these factors meet the demands of signal relay suppliers delivering products with proven reliability and efficiency for professional electrical control systems.
| CONTACT DATA | |
| Model | YX201/YX201H |
| Contact Arrangement | 1A，1C |
| Contact Resistance | 100mΩ Max. |
| Contact Material | Silver Alloy |
| Contact Rating ( Res.Load ) | 10A 250VAC |
| Max. Switching Current | 10A |
| Max. Switching Voltage | 250VAC |
| Max. Switching Power | 2500VA |
| Mechanical endurance | 1x107 次 OPS |
| Electrical endurance | 1x105 次 OPS |
| CHARACTERISTICS | |
| Operate Time ( at nomi.volt. ) | 10ms Max. |
| Release Time ( without diode ) | 5ms Max. |
| Insulation Resistance | 1000MΩ Min.( 500VDC ) |
| Dielectric Strength | Between Open Contacts : 1,000VAC, 50/60Hz 1 min. |
| Between Coil & Contacts: 4,000VAC, 50/60Hz 1 min | |
| Vibration resistance | Functional: 10~55Hz 双振幅 1.5mm ( DA ) |
| Destructive: 10~55Hz 双振幅 1.5mm ( DA ) | |
| Shock resistance | Functional: 10G Min. |
| Destructive: 100G Min. | |
| Ambient Temperature | -40℃~+105℃ ( No condensation) |
| Unit Weight | Approx. 5.5g |
| COIL DATA (at 23℃) | ||||||
| Rated voltage (VDC) |
Rated current ±10%(mA) |
Coil resistance ±10%(Ω ) |
Max allowable voltage VDC (Max.) |
Operate voltage VDC (Max.) |
Release voltage VDC (Min.) |
Rated coil power (W) |
| 3 | 150.0 | 20 | of rated voltage130 % | of rated voltage75 % | of rated voltage5 % | approx.0.45 |
| 5 | 89.3 | 20 | ||||
| 6 | 75.0 | 80 | ||||
| 9 | 50.0 | 180 | ||||
| 12 | 37.5 | 320 | ||||
| 15 | 30.0 | 500 | ||||
| 18 | 25.0 | 720 | ||||
| 24 | 18.8 | 1,280 | ||||
| 48 | 9.4 | 5,120 | ||||
| ORDERING INFORMATION | |
| Type designation : | YX201 (5A) / YX201H (10A) |
| Protective construction : | S-Flux proofed |
| Number of poles : | 1-1 Group |
| Coil voltage : | 03,05,06,09,12,18,24,48 (VDC) |
| Contact form : | Nil-Form C , M-Form A |
| Temperature grade : | Nil-85 ℃, F-105 ℃ |
| Outline Dimensions | PCB Layout (Bottom View) | Wiring Diagram( Bottom View) |
 |
 |
 |
